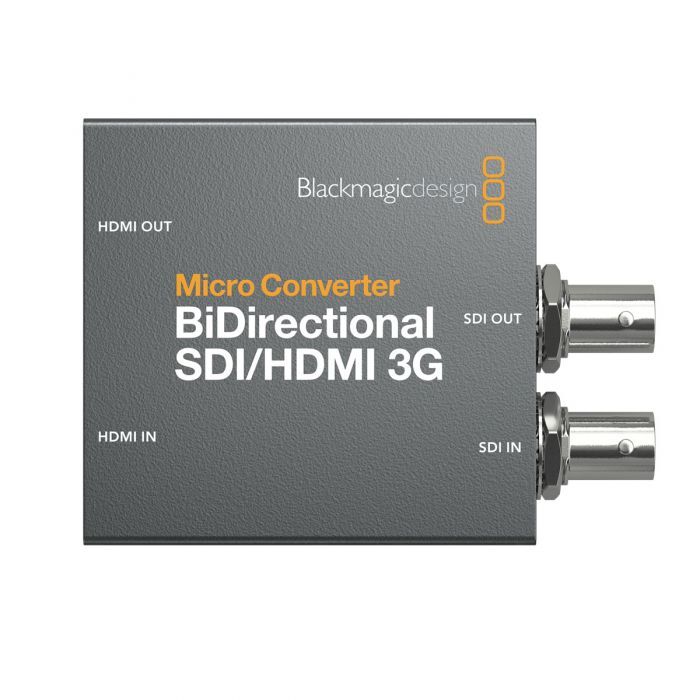

Pocket sized broadcast quality converters
Convert HDMI Cameras to SDI
Update and Change Settings
Monitoring with 3D LUTs
Convert with Camera Cotrol
Includes HDMI Timecode Support
SDI Re-clocking
Wider range of video standards
USB or AC Power
Specification
Connections
SDI Video Inputs: 1 x SD, HD or 3G‑SDI.
SDI Video Outputs: Automatically matches the HDMI video input.
HDMI Video Inputs: HDMI Type A in.
HDMI Outputs: HDMI Type A out.
Multi Rate Support: Auto detection of SD or HD.
Updates, Configurations and Power: USB Type‑C.
Reclocking: Yes
Standards
SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility.
SDI Colour Precision: 4:2:2
SDI Colour Space: YUV
SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Colour Precision: 4:2:2
HDMI Colour Space: YUV
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Camera Control
Bidirectional signal conversion supports Blackmagic Camera Control and Tally
Software
Software Control: Mac OSX™ and Windows™ software via USB.
Internal Software Upgrade: Via USB.
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 10
Settings Control
Via software utility.
Power Requirements
Power Consumption: 2.5 W
Operational Voltage Range: 4.4 to 5.25V DC
Specifications
Width: 81mm
Height: 25mm
Depth: 59mm
Weight: 174g
Environmental Specifications
Operating temperature: 0° to 40° C (32° to 104° F)
Storage temperature: -20° to 60° C (-4° to 140° F)
Relative Humidity: 0% to 90% non-condensing
