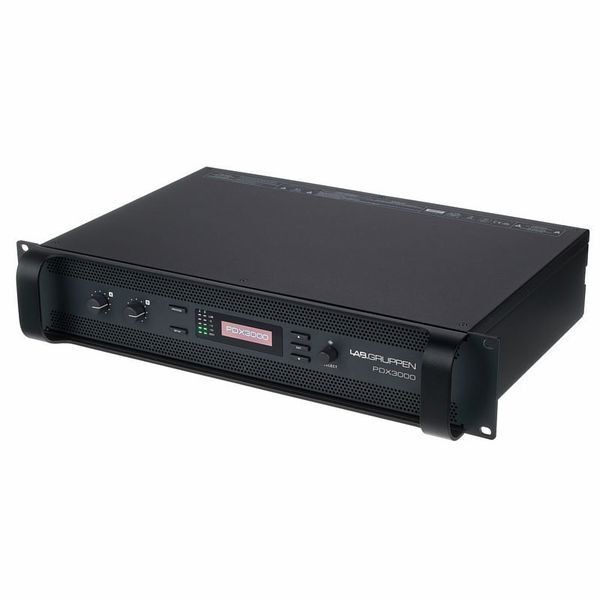

Lab Gruppen PDX3000

Two channel amplifier delivering 2 x 1500 Watts
Full DSP feature set for speaker processing
Proven and reliable Class-D amplifier stage
Highly efficient Switch Mode Power Supply (SMPS)
Comprehensive configuration and monitoring software through USB connection
Intuitive front panel user interface for easy setup and monitoring
Precise power management guarantees performance and efficiency
Comprehensive circuit protection against short circuits, DC and thermal overload
User configurable gain, delay, crossover, EQ, limiter and dynamic EQ
Speaker Protect Limiter for maximum level output and reliable driver protection
Pre-configured crossover settings for speaker configuration
Balanced XLR and TRS input connectors with optimised sensitivities
Industry standard twist-lock output connectors
Front panel locking functionality for ultimate security
Efficient cooling with temperature
Rugged and lightweight rack mount chassis for maximum durability

Power: 2x 1000 W @ 2 Ohm, 2x 1500 W @ 4 Ohm, 2x 800 W @ 8 Ohm, 3000 W Peak
Class D power amp
DSP configuration on the front panel or via USB connection and PDX Controller software from a PC
LCD display
Adjustable gain, delay, crossover, EQ, limiter and dynamic EQ
Switch mode power supply (SMPS)
Comprehensive circuit protection against short circuits, DC and thermal overload
Speaker Protect Limiter for maximum level output and reliable driver protection
Pre-configured crossover settings for speaker configuration
Front panel locking functionality
Temperature controlled fan
Signal-to-noise ratio: > 90 dB
THD+N: 20 – 20,000 Hz @ 1 W <0.1%
Frequency response: 10 – 20,000 Hz, + 0.5 / -1 dB
Input impedance: 10 kO unbalanced, 20 kO balanced
Internal sample rate: 96 kHz
2x XLR inputs
2x 6.3 mm Jack inputs
2x SpeakerTwist NLT4 outputs
Dimensions (H x W x D): 93 x 483 x 326 mm
Weight: 6.5 kg
Colour: Black
Designed and developed in Sweden
